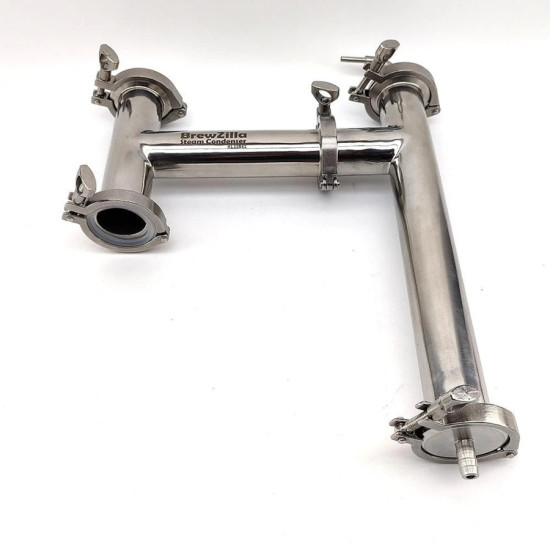

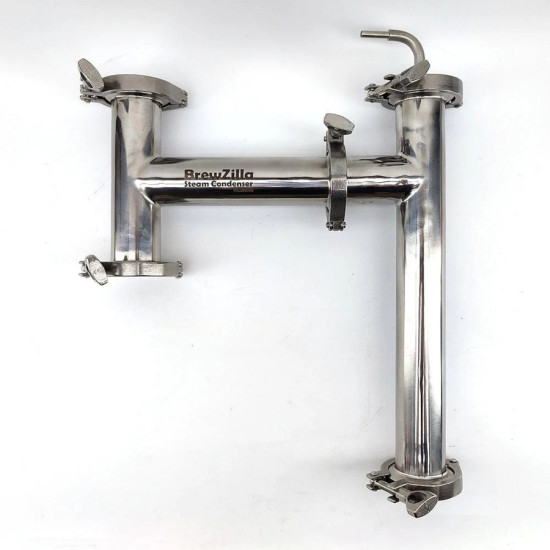

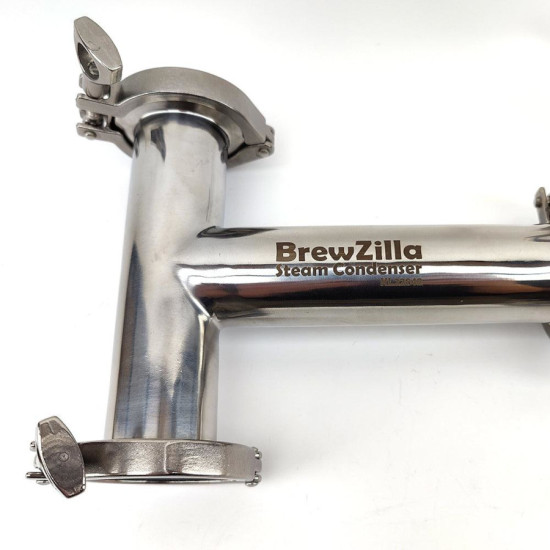

BrewZilla Steam Condenser Set - 2" Tri Clamp

BrewZilla Steam Condenser Set - 2" Tri Clamp

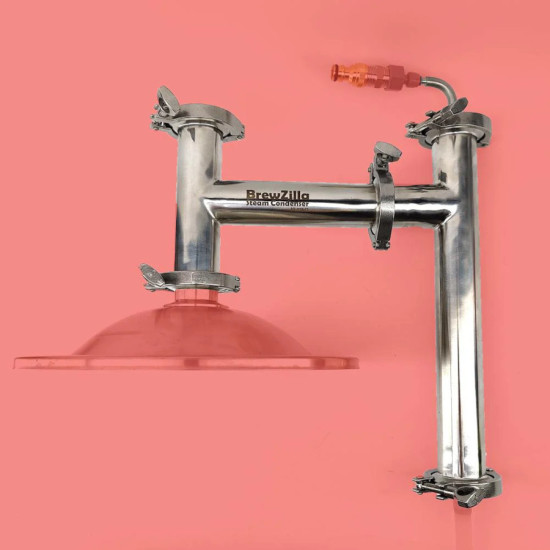

This steam condenser lid can be compatible with the 35L or 65L BrewZilla/DigiBoil with the stainless distillation lid and 2 Inch Bulkhead. This unit can allow brewing indoors without that pesky sticky steam gumming up your freshly painted interior! The End Cap can be removed for brewing salts/hops and other brewing essentials to be added during the boil. Please note hot steam through this port can lead to serious scalding, please use heatproof gloves.

Not only will you get to the boil faster, but you will use less power overall to maintain a rolling boil as there will be less area for the heat to escape. No need to install inside a kitchen, or in the garage with a special range hood. Simply attach this to the Condenser Lid and run your kitchen tap, garden hose to the inlet. You don't need superfast flow rate to cool boiling steam into liquid. Different to distillation where you require the distillate to be under a certain temperature so that ethanol doesn't evaporate from the liquid at a high rate, with boiling wort you just need enough to form a liquid! Pretty simple.

Eco-Friendly option if you have the means to save/collect the coolant water. Can be re-used on the garden or for cleaning later on. Please note the water discharging will be very hot!

The Spray head can condense 1.6 litres per minute while connected to 100 psi mains water.

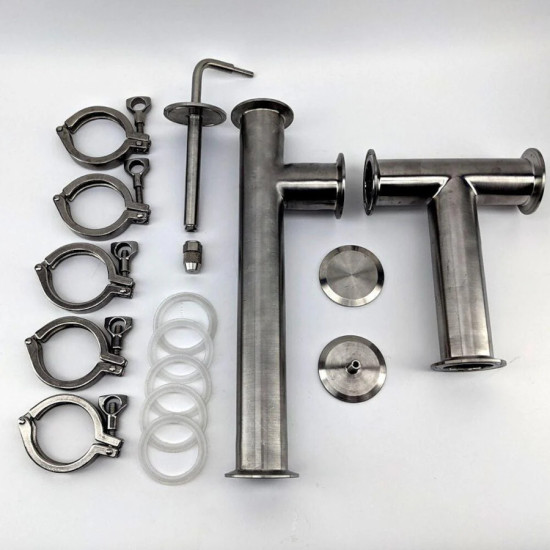

This Condenser kit includes:
5 x 2" Tri Clamp Clamps
5 x 2" Tri Clamp Double Beaded Silicone Seals
1 x 340mm Long 2 Inch Tri Clamp Tee
1 x 200mm Wide 2 Inch Tri Clamp Tee
1 x 2" Tri Clamp End Cap
1 x 2" Tri Clamp to 6.5mm duotight elbow cap with elongated spray head mister

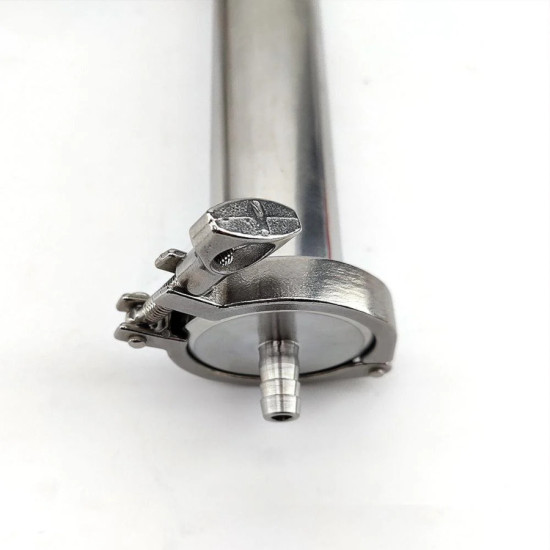

1 x 2" Tri Clamp x 12mm Barb (Suitable for 10mm ID Silicone Hosing)

Some of these fittings are not sold separately

Does not include:
Garden hose / Kitchen Hose fittings to 6.5mm duotight. The photo shows a way to connect a 6.5mm x 1/2" female to a 1/2" Male Hex Nipple to a Male Garden hose fitting.

Stainless Lid with 47 mm hole for 35L Brewzilla/Digiboil

Stainless Lid with 47 mm hole for 65L Brewzilla/Digiboil

2" Tri Clamp Bulkhead adaptor for Stainless Steel Lid
