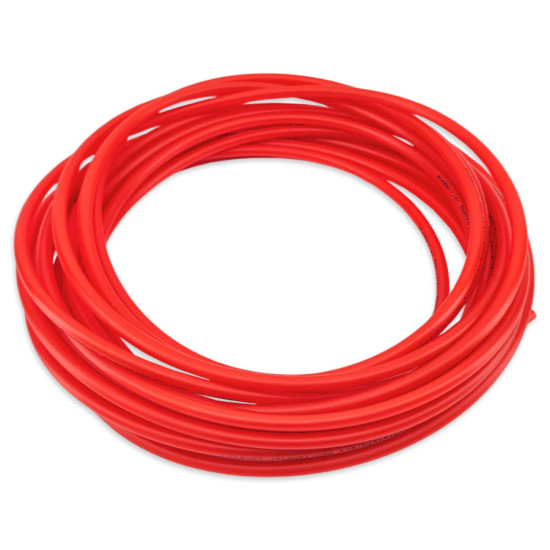

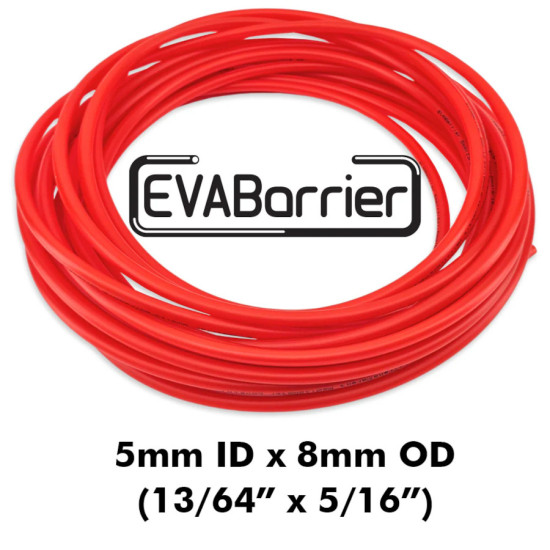

Red EVABarrier 5mm ID x 8mm OD - Double Wall Semi-Transparent EVA

Red EVABarrier 5mm ID x 8mm OD - Double Wall Semi-Transparent EVA

This high quality beer line will keep your previous beverage in its best possible condition in the process.

This 5mm size is the one of the most common sizes for kegerator setups.

When using this 5mm ID size, you will need to use about 3–4 meters of beer line to get adequate flow resistance between your keg and tap for most kegerator setups.

Pressure Rating (with 1.5x safety factor)
30C - 1.4 MPa (200psi)
50C - 0.7MPa (100psi)

This new Red EVA Double walled tubing is made with an EVA outer wall and also an inner proprietary polymer barrier.

Red Outer Barrier

The outer barrier has accurately extruded tolerances and made from an EVA material. It also seals well when used with various John Guest, duotight or other push in fittings.  The outer barrier gives the tubing excellent kink resistance, so the line is able to bend around a tight radius without kinking.

Inner Barrier

The inner barrier is made from a proprietary polymer that has excellent gas barrier.  The significantly better barrier properties mean your beer is better protected from oxygen and also has a better barrier to CO2 loss.  So your beer will stay fresher for longer and not loose carbonation like other beer line types.  In some beer line types, you may notice that the beer sitting in the lines starts to taste flat and/or oxidised when sitting in the lines for an extended period.  EVABarrier tubing is significantly better in this regard, and you will notice a significantly improved freshness of your beer, especially if it's been sitting in the lines.

Due to the high density and smooth nature of the EVABarrier inner barrier the tubing internal surface is super smooth and almost completely impermeable.  This makes it difficult for bacteria and other microbes to attach to the inside surface of the tubing.
